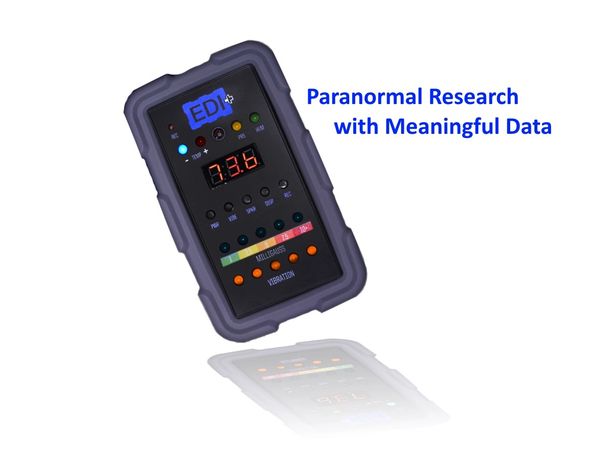

• EDI Plus Multi-Meter and Data Logger

    $195.00

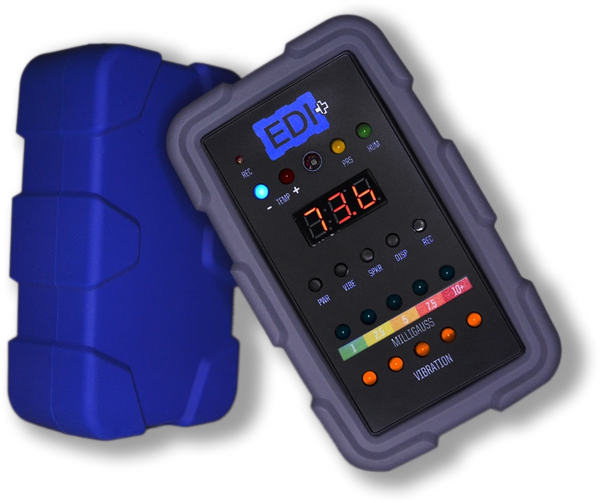

    THE NEWEST EDI METER - with Grey protection Cover!!

    EMF

    • Temp

    • Pressure

    • Humidity

    • Vibration

    • Data-Logging





    Technical Specs:

    EMF

    -Low frequency down to 10 hz

    -Accurate milligauss readings from 0-12mg

    -Single Axis

    -Indicator lights start dim response at approximately 1 milligauss and light sequentially at various strengths up to 12mg

    -Speaker responds at approximately 3 milligauss

    Vibration Sensor

    -3 axis accelerometer with  high pass filtered output to measure changes in acceleration in the +- 2g range

    -Five indicator LEDs will set off in increasing intensity between 0.0244G - 0.122G

    Temperature

    -Accurate to +-1 C from 0-65 C with 0.1 C resolution

    -Alarms LEDs sensitive to +-0.1 F change in < 0.5 seconds

    Data Logging & EDI-Graph App

    All sensor data can be recorded to an SD card. Once per second the min/max values of each sensor is calculated and saved to a log file on the SD card

    -Data is logged in .CSV format

    -Application Requirements: PC with Windows

    Humidity

    -Accurate to +- 3 %RH in 20 - 80 %RH range with 0.1%RH resolution

    Alarm LEDs sensitive to +- 3%RH change in < 0.5 seconds

    Pressure

    Accurate to +- 1.0hPa in 300 - 1000 hPa range with 0.1 hPa resolution

    -Alarm LEDs sensitive to +- 0.15 hPa change in < 0.5 seconds



    EDI USER GUIDE
